Description

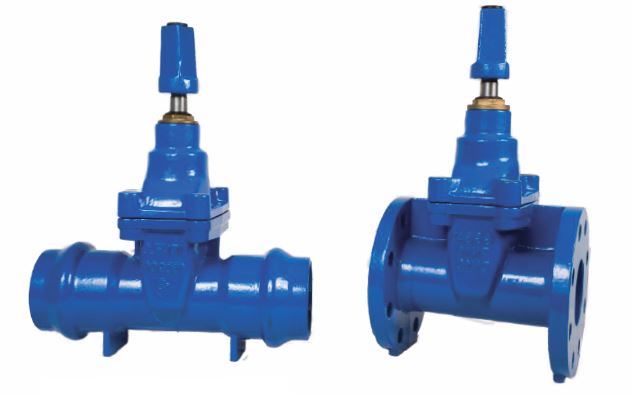

Resilient seal valves are designed in accordance with BS5163 or SABS 664 and SABS 665. With EPDM rubber encapsulated gate, the RSV has a smooth straight through bore with no pockets.  Available as handwheel operated or with cap top.

• Available in sizes 50mm – 600mm
• Flanges drilled conform to DIN2501/BS4504
• Normal pressure: 1.6MPa
• Shell test pressure: 2.4MPa
• Seal test pressure: 1.76MPa
• Suitable medium: Water and neutral liquid
• Suitable temperature:
  – NBR < 80°C
  – EPDM < 120°C
